Description

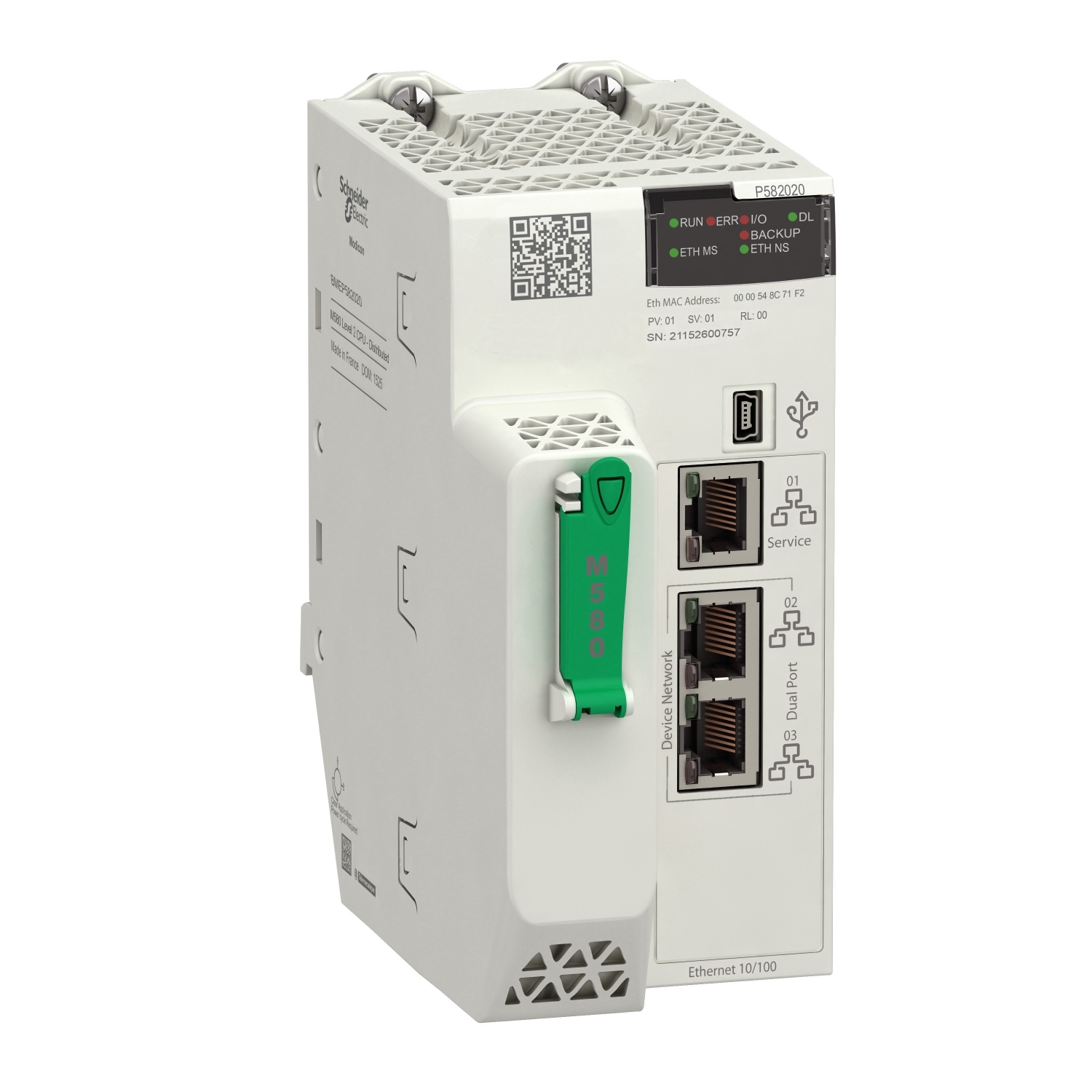

Processor module, Modicon M580, Level 5, Remote
| range of product |
Modicon M580
|
|
|---|---|---|
| product or component type |
Processor module
|
|
| impregnation material |
Conformal coated
|
|
| supply |
Internal power supply via rack
|
| number of racks |
8
|
|
|---|---|---|
| Local I/O processor capacity (discrete) |
5120 I/O
|
|
| Local I/O processor capacity (analog) |
1280 I/O
|
|
| Number of application specific channel (local rack) |
180
|
|
| application specific I/O |
SSI encoder
Serial link Accurate time stamping Counter HART Motion control |
|
| checks |
Process control
|
|
| control channels |
Programmable loops
|
|
| integrated connection type |
USB type mini B
1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network |
|
| number of remote I/O station |
31 – 2 rack(s) per remote drop
|
|
| number of distributed equipment |
64
|
|
| communication module processor capacity |
8 AS-Interface module
6 Ethernet communication module |
|
| communication service |
DIO scanner
RIO scanner |
|
| memory description |
Expandable flash 4 GB data storage
Integrated RAM 10 kB system memory Integrated RAM 24 MB program Integrated RAM 4096 kB data |
|
| application structure |
1 cyclic/periodic master task
128 event tasks 2 auxiliary tasks 1 periodic fast task |
|
| number of instructions per ms |
40 Kinst/ms 100 % Boolean
60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
|
| current consumption |
295 mA 24 V DC
|
|
| MTBF reliability |
600000 H
|
|
| marking |
CE
|
|
| status LED |
1 LED green download in progress (DL)
1 LED red memory card or CPU flash fault (BACKUP) 1 LED green/red ETH MS (Ethernet port configuration status) 1 LED green/red Eth NS (Ethernet network status) 1 LED green I/O values overrided by user (FORCED IO) 1 LED green processor running (RUN) 1 LED red I/O module fault (I/O) 1 LED red processor or system fault (ERR) |
|
| product weight |
1.87 lb(US) (0.849 kg)
|
| vibration resistance |
3 gn
|
|
|---|---|---|
| shock resistance |
30 gn
|
|
| ambient air temperature for operation |
-13…140 °F (-25…60 °C)
|
|
| ambient air temperature for storage |
-40…185 °F (-40…85 °C)
|
|
| operating altitude |
0…6561.68 ft (0…2000 m)
2000…5000 m (with derating factor) |
|
| relative humidity |
5…95 % 55 °C conforming to without condensation
|
|
| IP degree of protection |
IP20
|
|
| directives |
2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility 2012/19/EU – WEEE directive |
|
| standards |
EN 61131-2
EN 61010-2-201 EN 61000-6-4 EN 61000-6-2 |
|
| protective treatment |
Conformal coating
|
|
| environmental characteristic |
Gas resistant class Gx
Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 |
|
| product certifications |
IEC-Ex
EAC Merchant Navy ATEX CE CSA RCM UL |
