Description

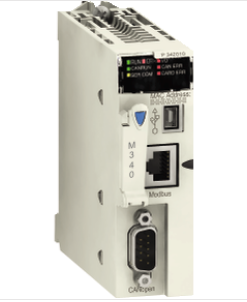

Processor module, Modicon M340 automation platform, max 1024 discrete + 256 analogue I/O
| range of product |
Modicon M340 automation platform
|
|
|---|---|---|
| product or component type |
Processor module
|
|
| number of racks |
4
|
|
| number of slots |
11
|
|
| discrete I/O processor capacity |
1024 I/O multi-rack configuration
704 I/O single-rack configuration |
|
| analogue I/O processor capacity |
256 I/O multi-rack configuration
66 I/O single-rack configuration |
|
| number of application specific channel |
36
|
|
| monitoring |
Diagnostic counters Modbus
Event counters Modbus |
| control channels |
Programmable loops
|
|
|---|---|---|
| motion control |
Independent axis CANopen
|
|
| integrated connection type |
Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3…19.2 kbit/s full duplex
Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3…19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3…19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3…19.2 kbit/s half duplex USB port at 12 Mbit/s CANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s…1 Mbit/s |
|
| communication module processor capacity |
2 Ethernet communication module
4 AS-Interface module |
|
| embedded communication service |
Network management (NMT) CANopen
Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen Special functions (SYNC, EMCY, TIME) CANopen |
|
| transmission rate |
1 Mbit/s 0.00…65.62 ft (0…20 m) 0.00…1.97 ft (0…0.6 m)
125 kbit/s 0.00…1640.42 ft (0…500 m) 0.00…32.81 ft (0…10 m) 20 kbit/s 0.00…8202.10 ft (0…2500 m) 0.00…984.25 ft (0…300 m) 250 kbit/s 0.00…820.21 ft (0…250 m) 0.00…32.81 ft (0…10 m) 50 kbit/s 0.00…3280.84 ft (0…1000 m) 0.00…393.70 ft (0…120 m) 500 kbit/s 0.00…328.08 ft (0…100 m) 0.00…32.81 ft (0…10 m) 800 kbit/s 0.00…131.23 ft (0…40 m) 0.00…19.69 ft (0…6 m) |
|
| bus type |
CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA
CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
|
| number of slave |
63 CANopen
|
|
| number of devices per segment |
0…32character mode)
0…32Modbus) 0…16 672.57 ft (205 m) CANopen) 0…32 606.96 ft (185 m) CANopen) 0…64 524.93 ft (160 m) CANopen) |
|
| number of devices |
2 point-to-point character mode
2 point-to-point Modbus |
|
| bus length |
0.00…32.81 ft (0…10 m) serial link non isolated character mode segment
0.00…32.81 ft (0…10 m) serial link non isolated Modbus segment 0.00…3280.84 ft (0…1000 m) serial link isolated character mode segment 0.00…3280.84 ft (0…1000 m) serial link isolated Modbus segment 0.00…49.21 ft (0…15 m) character mode point-to-point 0.00…49.21 ft (0…15 m) Modbus point-to-point |
|
| maximum tap links length |
<49.21 ft (15 m) serial link non isolated character mode segment
<49.21 ft (15 m) serial link non isolated Modbus segment <131.23 ft (40 m) serial link isolated character mode segment <131.23 ft (40 m) serial link isolated Modbus segment |
|
| number of addresses |
0…248 character mode
0…248 Modbus |
|
| requests |
1 K data bytes per request character mode
252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus |
|
| control parameter |
One CRC on each frame (RTU) Modbus
One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus |
|
| memory description |
Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data
Internal RAM 4096 kB Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols |
|
| maximum size of object areas |
256 kB unlocated internal data
32634 %Mi located internal bits |
|
| default size of object areas |
1024 %MWi internal words located internal data
256 %KWi constant words located internal data 512 %Mi located internal bits |
|
| application structure |
No auxiliary task
1 cyclic/periodic master task 1 periodic fast task 64 event tasks |
|
| execution time per instruction |
0.12 µs Boolean
0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points |
|
| number of instructions per ms |
6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
8.1 Kinst/ms 100 % Boolean |
|
| system overhead |
0.13 ms fast task
0.7 ms master task |
|
| current consumption |
90 mA at 24 V DC
|
|
| supply |
Internal power supply via rack
|
|
| marking |
CE
|
|
| status LED |
1 LED (green)integrated machine/installation bus operational (CAN RUN)
Processor running (RUN) 1 LED Green) I/O module fault (I/O) 1 LED Red) 1 LED (red)integrated machine/installation bus fault (CAN ERR) 1 LED (red)memory card fault (CARD ERR) Processor or system fault (ERR) 1 LED Red) 1 LED (yellow)activity on Modbus (SER COM) |
|
| Net Weight |
0.46 lb(US) (0.21 kg)
|
| ambient air temperature for operation |
32…140 °F (0…60 °C)
|
|
|---|---|---|
| relative humidity |
10…95 % without condensation
|
|
| IP degree of protection |
IP20
|
|
| protective treatment |
TC
|
|
| directives |
2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility |
|
| product certifications |
CE
UL CSA RCM EAC Merchant Navy |
|
| standards |
EN 61131-2
EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5 EN/IEC 61850-3 |
|
| environmental characteristic |
Hazardous location class I division 2
|
| Category |
18160 – MODICON M340
|
|
|---|---|---|
| Discount Schedule |
PC34
|
|
| GTIN |
00785901669296
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
0.55 lb(US) (0.25 kg)
|
|
| Returnability |
No
|
|
| Country of origin |
FR
|
