Description

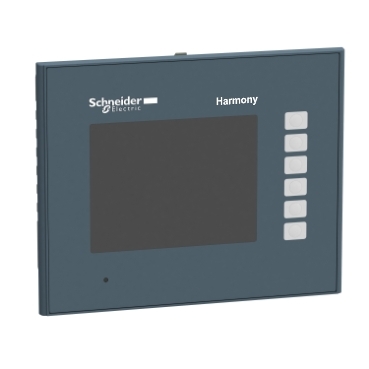

| Range of product | Harmony GTO |
|---|---|
| Product or component type | Advanced touchscreen panel |
| display colour | 65536 colours |
| display size | 3.5 inch |
| Supply | External source |
| Control button type | 6 operation defined using Vijeo Designer push-button key F1…F6 |
| Operating system | Harmony |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
| Terminal type | Touchscreen display |
|---|---|
| display type | Backlit colour TFT LCD |
| display resolution | 320 x 240 pixels QVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white at 25 °C |
| Brightness | 16 levels – control by touch panel 16 levels – control by software |
| character font | Chinese (simplified Chinese) ASCII (European characters) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Maximum power consumption in W | 5.2 W when power is not supplied to external devices 4.2 W when backlight is OFF 4.3 W when backlight is dimmed 9.6 W |
| Local signalling | Status LED green, steady for offline Status LED green, steady for operating Status LED orange, flashing for software starting up Status LED red, steady for power supply (ON) Status LED clear, faded for power supply (OFF) |
| Software designation | Vijeo Designer configuration software >= V6.1 |
| Memory description | Flash EPROM, 64 MB |
| Data backed up | 128 kB internal RAM (SRAM) |
| Downloadable protocols | Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols |
| Integrated connection type | COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400…115200 bps COM2 serial link RJ45, interface: RS485, transmission rate: 2400…115200 bps COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI USB 2.0 type A USB 2.0 type mini B |
| Product mounting | Flush mounting |
| Fixing mode | By 4 screw clamps |
| Front material | PPT |
| Enclosure material | PPT |
| Type of cooling | Natural convection |
| Width | 132 mm |
| Height | 106 mm |
| depth | 42 mm |
| Net weight | 0.4 kg |
| Standards | UL 508 EN 61131-2 IEC 61000-6-2 |
|---|---|
| product certifications | C-Tick cULus CE KCC UKCA UKEX |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | < 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z conforming to EN/IEC 61131-2 |
| Vibration resistance | 9.8 m/s² (f = 9…150 Hz) – X, Y, Z directions for 10 cycles (approx. 100 min) – conforming to EN/IEC 61131-2 3.5 mm (f = 5…9 Hz) – X, Y, Z directions for 10 cycles (approx. 100 min) – conforming to EN/IEC 61131-2 |
| Resistance to electrostatic discharge | 6 kV contact discharge conforming to IEC 61000-4-2 level 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.500 cm |
| Package 1 Width | 18.200 cm |
| Package 1 Length | 21.500 cm |
| Package 1 Weight | 707.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.700 kg |
