Description
| range of product | Harmony ST6 |
|---|---|

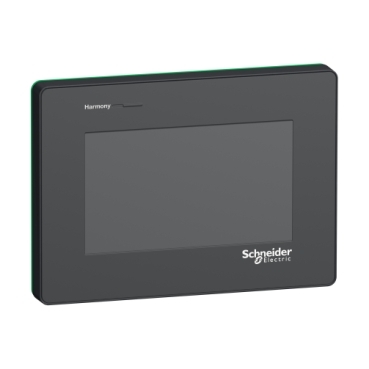

| product or component type | Touch panel screen |
| display size | 4 inch |
|---|---|
| display type | Colour TFT LCD |
| display colour | 16 million colours |
| display resolution | 480 x 272 pixels |
| touch panel | Single touch analogue resistive |
| backlight lifespan | 20000 hours with white |
| brightness | 16 levels |
| character font | ASCII ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Katakana Korean Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC (+/- 20 %) |
| inrush current | 30 A |
| local signalling | Status LED green, steady for offline Status LED green, steady for operating Status LED green, flashing for operating Status LED green, faded for stand-by Status LED orange, flashing for software starting up Status LED red, steady for power supply (ON) Status LED red, flashing for operating Status LED red, off for power supply (OFF) |
| power consumption in W | 1.0 W |
| number of pages | 200 application pages |
| software package | EcoStruxure Operator Terminal Expert |
| realtime clock | Built-in 0…50 °C Built-in 10…90 % RH |
| fixing mode | Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to UL 61010-2-201 Ø 22 mm hole conforming to EN 61131-2 Ø 22 mm hole conforming to IEC 61000-6-2 |
| front material | Plastic |
| marking | CE |
| cut-out dimensions | Ø 22.5 mm |
| height | 101.1 mm |
| width | 140.4 mm |
| depth | 29.8 mm |
| net weight | 0.22 kg |
| immunity to microbreaks | 2 ms |
|---|---|
| standards | EN 61000-6-4 EN 61000-6-2 EN 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 |
| product certifications | CSA CE KC UL Class 1 Division 2 DNV ABS RINA BV |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| ambient air temperature for operation | 0…50 °C |
| ambient air temperature for storage | -20…60 °C |
| relative humidity | 10…90 % non-condensing |
| operating altitude | 2000 m |
| IP degree of protection | IP65 (front panel) conforming to IEC 61131-2 |
| NEMA degree of protection | NEMA 4 front panel (indoor use) NEMA 13 front panel (in enclosure) |
| shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to EN/IEC 61131-2 |
| vibration resistance | +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 9.8 m/s² (f = 9…150 Hz) |
| electromagnetic compatibility | Electrical fast transient/burst immunity test – test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (signal ports) Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 Electrostatic discharge immunity test – test level: 8 kV (air discharge) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.2 cm |
| Package 1 Width | 13.5 cm |
| Package 1 Length | 21.5 cm |
| Package 1 Weight | 389.0 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 72 |
| Package 2 Height | 80.0 cm |
| Package 2 Width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Package 2 Weight | 40.036 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 9 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 3.942 kg |
