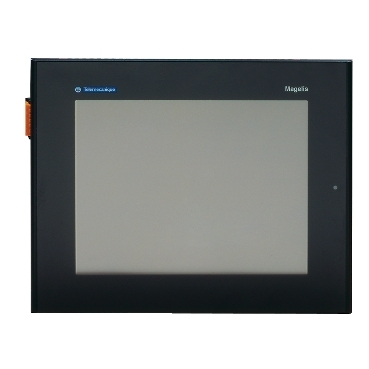

XBTGT4340

Original price was: $ 4,794.00.Current price is: $ 3,788.00.

In stock

Category:

Description

Main
range of product Magelis XBTGT
product or component type Advanced touchscreen panel
display type Backlit colour TFT LCD
display colour 65536 colours
display resolution 640 x 480 pixels VGA
display size 7.5 inch
software type Configuration software
software designation Vijeo Designer
operating system Magelis
processor name CPU RISC
processor frequency 266 MHz
memory description 512 kB SRAM back up of data with lithium battery back-up
32 MB flash EPROM application memory
integrated connection type RJ45 connector COM2 serial link with RS485 interface at <= 187.5 kbit/s, compatible with Siemens MPI (187.5 kbits/s)
male SUB-D 9 connector COM1 serial link with RS232C/RS422/RS485 interface at <= 115.2 kbits/s
removable screw terminal block connector power supply
RJ45 connector Ethernet TCP/IP
3 removable screw terminal block connector digital output
removable screw terminal block connector audio output
removable screw terminal block connector digital input
USB type A master port (V1.1)
mini-jack connector audio input
RCA connector composite video input (NTSC/PAL)
resistance to electrostatic discharge 6 kV conforming to IEC 61000-4-2 level 3
cut-out dimensions 204.5 (+ 1/- 0) x 159.5 (+ 1/- 0) mm
Complementary
touch sensitive zone 1024 x 1024
touch panel Analogue
backlight lifespan 54000 hours
brightness 8 levels via touch panel
contrast 8 levels via touch panel
character font Chinese (simplified Chinese)
Taiwanese (traditional Chinese)
ASCII (European characters)
Japanese (ANK, Kanji)
Korean
[Us] rated supply voltage 24 V DC
supply External source
supply voltage limits 19.2…28.8 V
inrush current 30 A
power consumption in W 28 W
local signalling 1 LED (green or orange) for normal operation or backlighting faulty
number of pages Limited by internal memory capacity
downloadable protocols Telemecanique Modicon FIPWAY
Telemecanique Modicon Modbus Plus
Telemecanique Modicon Modbus TCP
Telemecanique Modicon Modbus
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols
Telemecanique Modicon Uni-TE
realtime clock Built-in
data storage equipment 1 Compact Flash card >= 1 GB
use of slot For 1 fieldbus communication card (Device Net, Profibus DP)
port Ethernet 10BASE-T/100BASE-TX
product mounting Flush mounting
fixing mode By 4 spring clips
By 4 screw clamps
front material Aluminium alloy
enclosure material PPT
marking CE
width 215 mm
height 170 mm
depth 60 mm
net weight 1.8 kg
Environment
immunity to microbreaks 10 ms
standards EN 61131-2
FCC Class A
CSA C22.2 No 14
UL 1604
UL 508
IEC 61000-6-2
product certifications UL Class 1 Division 2 T5
UL Class 1 Division 2 T4A
CSA Class 1 Division 2 T5
ATEX zone 2/22
C-Tick
cULus
CSA Class 1 Division 2 T4A
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 10…90 % without condensation
operating altitude < 2000 m
IP degree of protection IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529
NEMA degree of protection NEMA 4X front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance 1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz)
3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz)
resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
resistance to fast transients 2 kV conforming to IEC 61000-4-4 level 3
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 2.801 kg
Package 1 Height 18.0 cm
Package 1 width 27.0 cm
Package 1 Length 30.5 cm
