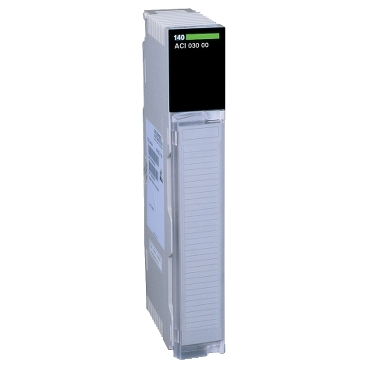

Description
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Intrinsically safe temperature input module |
| Software designation | Concept version V2.2 and above Unity Pro |
| Type of filter | Plus notch input filter 50/60 Hz thermocouple Single low pass input filter 20 Hz thermocouple |
| Product destination | In conjunction with products for zone 20, 21 or 22 |
|---|---|
| Analogue input number | 8 |
| Analogue input type | Low level voltage: -100…100 mV Low level voltage: -25…25 mV Thermocouple: – 210…760 °C for thermocouple J Thermocouple: – 270…1000 °C for thermocouple E Thermocouple: – 270…1370 °C for thermocouple K Thermocouple: – 270…400 °C for thermocouple T Thermocouple: – 50…1665 °C for thermocouple R Thermocouple: – 50…1665 °C for thermocouple S Temperature probe: – 200…850 °C for Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe: – 60…180 °C for Ni 100, Ni 200, Ni 500, Ni 1000 Thermocouple: – 130…1820 ° C for thermocouple B |
| Measurement current | 0.5 mA Pt 500, Pt 1000, Ni 500, Ni 1000 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200 |
| Source resistance | < 200 Ohm thermocouple |
| Input impedance | > 10 MOhm RTD thermocouple |
| Common mode rejection | > 100 dB 50/60 Hz RTD > 120 dB 50/60 Hz thermocouple |
| Cold junction compensation | Internal 0…60 °C thermocouple |
| Linearity | 0.003 % of full scale RTD |
| Resolution | 0.76 µV (16 bits) -25…25 mV millivolt 3.05 µV (16 bits) -100…100 mV millivolt 1 °C, 0.1 °C, 1 °F, 0.1 °F thermocouple 12 bits + sign (0.1 °C) RTD |
| Measurement accuracy | +/- 2 °C + 0.1 % of reading thermocouple E +/- 2 °C + 0.1 % of reading thermocouple J +/- 2 °C + 0.1 % of reading thermocouple K +/- 2 °C + 0.1 % of reading thermocouple T +/- 4 °C + 0.1 % of reading thermocouple B +/- 4 °C + 0.1 % of reading thermocouple R +/- 4 °C + 0.1 % of reading thermocouple S +/- 0.5 °C RTD at 25 °C +/- 0.9 °C RTD at 0…60 °C 20 µV + 0.1 % of reading millivolt at 25 °C |
| Absolute accuracy error | +/- 0.05 % of full scale RTD at 25 °C +/- 0.1 % of full scale maximum RTD at 25 °C |
| Accuracy drift according to temperature | 0.15 mV/°C + 0.0015 % of reading/°C max thermocouple |
| Update time | 1 s TC/millivolt thermocouple 1.35 s 3 wires RTD 750 ms 2 or 4 wires RTD |
| Isolation between channels and bus | 1780 V 47…63 Hz AC for 1 minute 2500 V DC for 1 minute |
| Fault type | Broken wire Out of range |
| Power dissipation in W | 2 W |
| Hot swapping fallback | Not allowed per intrinsic safety standards |
| Protection type | Internal fuse |
| marking | CE II1 G/D-EEx ia IIC |
| Bus current requirement | 400 mA |
| Module format | Standard |
| Product weight | 0.3 kg |
| standards | EN 50281-1-1 EN 50014 EN 50284 CSA C22.2 No 142 EN 50020 Directive ATEX 94/9/EC EN 50039 |
|---|---|
| Dust zone | Outside zone |
| Product certifications | Hazardous location class 1, division 1 groups A, B, C C-Tick.1 FM Class 1 Division 2 SIRA 02ATEX2345X |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 Hz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 0.676 kg |
