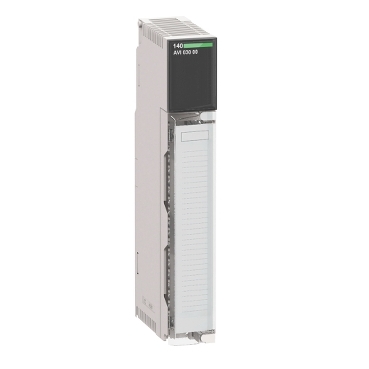

Description
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | Analogue input module |
| Type of filter | Single pole low pass – 3 dB at 847 Hz +/- 20 % |
| analogue input number | 8 |
|---|---|
| input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Bipolar current 20 mA Bipolar voltage +/- 10 V Bipolar voltage +/- 5 V Unipolar current 0…20 mA Unipolar voltage 0…10 V Unipolar voltage 0…5 V |
| Analogue input resolution | 16 bits +/- 10 V 16 bits +/- 5 V 16 bits 0…10 V 16 bits 0…20 mA 16 bits 0…5 V 16 bits 20 mA |
| Linear measuring range | (Input range) x 1.024 V (input range) x 1.024 mA |
| Absolute maximum input | 50 V DC 25 mA |
| Input impedance | > 20 Ohm voltage 250 MOhm +/- 0.03 % |
| Absolute accuracy error | +/- 0.03 % +/- 0.05 % of full scale maximum |
| Linearity error | +/- 0.008 % |
| Accuracy drift according to temperature | +/- 0.0015 % of full scale/°C <= 0.004 % of full scale /°C |
| Common mode rejection | > – 80 dB 60 Hz |
| Isolation between channels and bus | 500 Vrms AC 60 s 750 V DC |
| Isolation between channels | 135 Vrms AC 200 V DC |
| Update time | 10 ms |
| Fault type | Broken wire 4…20 mA Overtacking scale 1…5 V |
| Marking | CE |
| Local signalling | For bus communication is present (Active) 1 LED (green) for external fault 1 LED (red) for channel is turned on 8 LEDs (green) for channel fault 8 LEDs (red) |
| Bus current requirement | 280 mA |
| Power dissipation in W | 2.2 W |
| module format | Standard |
| Net Weight | 0.66 lb(US) (0.3 kg) |
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Standards | UL 508 CSA C22.2 No 142 |
| Product Certifications | FM Class 1 Division 2 cUL |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.14 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | 18155-QUANTUM I/O & POWER SUPPLIES |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595861136151 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.97 in (5.0 cm) |
| Package 1 Width | 6.50 in (16.5 cm) |
| Package 1 Length | 12.20 in (31.0 cm) |
| Package 1 Weight | 16.72 oz (474.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 7.31 lb(US) (3.318 kg) |
