Description
| range of product | Modicon Quantum automation platform |
|---|---|

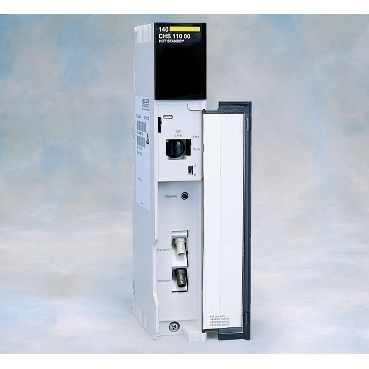

| product or component type | Hot standby module |
| software designation | Concept version >= V2.0 ProWORX 32 NxT version V2.0 |
| product compatibility | All legacy 140CPU with LL984 language |
|---|---|
| input/output type | 800 Series Sy/Max (remote I/O only) Quantum |
| transmission rate | 10 Mbit/s |
| transmission support medium | Fiber optic 3 m |
| switching time | 13…48 ms |
| electrical connection | 1 connector RJ45 for fiber optic receiver 1 connector RJ45 for fiber optic transmitter |
| local signalling | 1 LED (amber) for module in standby 1 LED (green) for communication with I/O module 1 LED (green) for control process 1 LED (green) for ready module 1 LED (red) for communication error |
| bus current requirement | 700 mA |
| module format | Standard |
| net weight | 1.06 kg |
| RFI immunity | 27…1000 MHz 10 V/m conforming to IEC 60801-3 |
|---|---|
| resistance to electrostatic discharge | 4 kV contact 8 kV air |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % without condensation |
| operating altitude | <= 5000 m |
| Package 2 Width | 30 cm |
|---|---|
| Package 2 Height | 30 cm |
| Package 2 Weight | 4.015 kg |
| Unit Type of Package 1 | PCE |
| Package 1 Length | 31 cm |
| Package 3 Height | 30.0 cm |
| Number of Units in Package 1 | 1 |
| Package 1 Width | 16.5 cm |
| Package 1 Height | 5 cm |
| Package 1 Weight | 500 g |
| Number of Units in Package 2 | 7 |
| Unit Type of Package 2 | S03 |
| Package 2 Length | 40 cm |
