Description

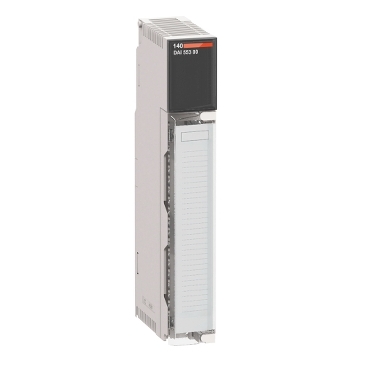

| range of product | Modicon Quantum automation platform |
|---|---|
| product or component type | VAC discrete input modules |
| software name | ProWORX 32 Unity Pro Concept |
| discrete input number | 16 |
| group of channels | 16 |
|---|---|
| addressing requirement | 1 input word |
| discrete input voltage | 115 V AC |
| input current | 11.1 mA at 57…63 Hz 13.2 mA at 47…53 Hz |
| voltage state 1 guaranteed | 79…132 V AC at 57…63 Hz 85…132 V AC at 47…53 Hz |
| voltage state 0 guaranteed | 0…20 V AC at 57…63 Hz 0…20 V AC at 47…53 Hz |
| input impedance | 12000 Ohm capacitive at 57…63 Hz 14400 Ohm capacitive at 47…53 Hz |
| network frequency limits | 47…63 Hz |
| maximum leakage current | 2.1 mA |
| absolute maximum input | 132 V continuous 156 V 10 s 200 V 1 cycle |
| response time | 4.9…0.75 ms x line cycle Off-On 7.3…12.3 ms On-Off |
| isolation between channels | 1780 Vrms for 1 minute |
| isolation between channels and bus | 1780 Vrms for 1 minute |
| bus current requirement | 180 mA |
| maximum power dissipation in W | 5.5 W |
| local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Marking | CE |
| module format | Standard |
| Net weight | 0.31 kg |
| protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Standards | UL 508 CSA C22.2 No 142 |
| product certifications | FM Class 1 Division 2 cUL |
| resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.3 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 31.2 cm |
| Package 1 Weight | 467 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 870 g |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 40 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 16 cm |
| Package 3 Weight | 9.957 kg |
