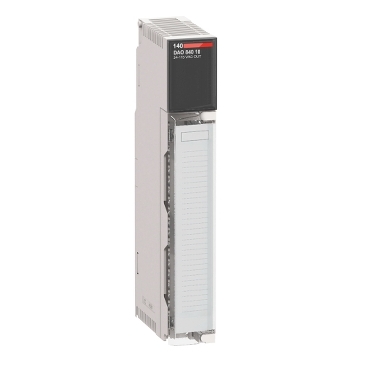

Name: 140DAO84210C
SKU: 6768
Price: 1583.00 USD
Availability: InStock

Description

Main
Range of product	Modicon Quantum automation platform
Product or component type	AC discrete output modules
Discrete output number	16

Complementary
Group of channels	4 groups of 4 channels
Supply frequency	47…63 Hz
Maximum voltage drop	1.5 V
Discrete output voltage	83…253 V AC
Addressing requirement	1 output word
Absolute maximum output	300 Vrms for 10 s AC 400 Vrms 1 cycle AC
Maximum load current	2 mA rms 115 Vrms off state leakage per output 2.5 mA rms 230 Vrms off state leakage per output 3 A rms 170…253 V per output 4 A rms 85…132 V per output 16 A rms per module 4 A rms per group
Surge current	10 A during 3 cycles per point 20 A during 2 cycles per point 30 A during 1 cycle per point 25 A during 3 cycles per group 30 A during 2 cycles per group 45 A during 1 cycle per group
DV/dt	400 V/ms
Response time	<= 0.5 ms at state 0 to state 1 <= 0.5 ms at state 1 to state 0
Fault indication	Blown fuse Loss of field power
Protection type	Internal output protection by 5 A fuse Internal by RC filter
Power dissipation	1.85 + (1.1 V x total module load current)
marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status
Bus current requirement	350 mA
Module format	Standard
Product weight	0.45 kg

Environment
Protective treatment	Conformal coating Humiseal 1A33
Product certifications	CUL FM Class 1 Division 2
standards	UL 508 CSA C22.2 No 142
Electromagnetic compatibility	Electrostatic discharge immunity test – test level: 4 kV (contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields – test level: 10 V/m (80…1000 MHz) conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
