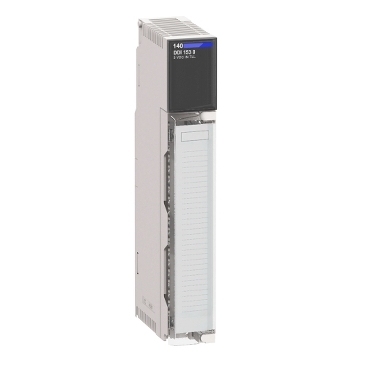

Name: 140DDI84100C used
SKU: 6942
Price: 580.00 USD
Availability: InStock

Description

Main
range of product	Modicon Quantum automation platform
Product or component type	Dc discrete input modules
Discrete input number	16

Complementary
group of channels	8
Logic input	Positive (sink)
Input voltage limits	10…60 V
Input voltage	12 V 5…10 mA DC 24 V 6…30 mA DC 48 V 2…15 mA DC 60 V 1…5 mA DC
Voltage state 1 guaranteed	11…24 V 24 V +/- 20 % 34…48 V 48 V +/- 20 % 45…60 V 60 V +/- 20 % 9…12 V 12 V +/- 5 %
Voltage state 0 guaranteed	0…1.8 V 12 V +/- 5 % 0…10 V 48 V +/- 20 % 0…5 V 24 V +/- 20 % 0…9 V 60 V +/- 20 %
Absolute maximum voltage	75 V
Addressing requirement	1 input word
Response time	4 ms from state 0 to state 1 4 ms from state 1 to state 0
Switching frequency	<= 100 Hz
Isolation between group and bus	2500 Vrms DC for 1 minute
Isolation between group	700 Vrms DC for 1 minute
Power dissipation	1 W + (0.62 x number of points on)
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status
Bus current requirement	200 mA
module format	Standard
Net weight	0.3 kg

Environment
Protective treatment	Conformal coating Humiseal 1A33
Standards	CSA C22.2 No 142 UL 508
product certifications	FM Class 1 Division 2 C-Tick
Resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
