Description

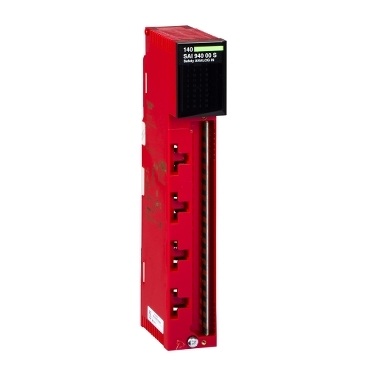

| range of product | Modicon Quantum automation platform |
|---|---|
| product or component type | Analogue safety input module |
| type of filter | Single pole low pass – 3 dB at 15 Hz |
| analogue input number | 8 |
|---|---|
| addressing requirement | 13 input words |
| analogue input resolution | 16 bits |
| linear measuring range | 0…25 mA |
| absolute maximum input | 35 mA |
| input impedance | 287 Ohm |
| absolute accuracy error | +/- 0.3 % +/- 0.35 % of full scale maximum |
| linearity error | +/- 2 µA max at 0…60 °C |
| common mode rejection | – 65 dB 60 Hz – 70 dB 50 Hz |
| isolation between channels and bus | 1500 V AC for 60 s |
| isolation between channels | 500 V AC for 60 s |
| update time | 15 ms |
| fault type | Overtacking scale |
| marking | CE |
| local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 8 LEDs (green) for input status 8 LEDs (red) for system failure, diagnostic of internal channel fault |
| bus current requirement | 400 mA |
| power dissipation in W | 3.5 W |
| product certifications | UL C-Tick CSA HazLoc TÜV Rheinland (SIL2) CSA |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 500.0 g |
| Package 1 Height | 4.7 cm |
| Package 1 width | 16.2 cm |
| Package 1 Length | 31.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Weight | 3.9 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
