Description

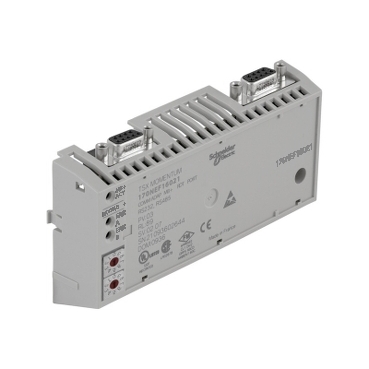

| Range of Product | Modicon Momentum automation platform |
|---|---|
| Product or Component Type | Modbus Plus communication adaptor |
| Bus manager PLC | Premium Quantum |
| Structure type | Industrial |
| communication port protocol | Modbus Plus |
| Method of access | Token bus Peer to peer |
| Transmission Rate | 1 Mbit/s |
| Transmission support medium | Twisted pair |
| Topology | Multidrop, device connecting by extension or tap off cable |
|---|---|
| Number of devices per segment | 0…31 per segment 0…63 all segment |
| Maximum cable distance between devices | 16404.20 ft (5000 m) with repeater |
| Data format | IEC 61131-2 |
| Fail state | Full scale value Forcing to state zero Maintain value Fallback to zero |
| Supply | From I/O base |
| Marking | CE |
| Local signalling | For module powered up or communicating (MB + ACT) 1 LED (green) for communication error network A (ERR A) 1 LED (red) for communication error network B (ERR B) 1 LED (red) |
| Electrical connection | 1 connector SUB-D 9 for connecting Modbus Plus network 1 connector SUB-D 9 for redundant Modbus Plus network |
| Product Certifications | CSA UL |
|---|---|
| Standards | FM Class 1 Division 2 |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.14 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 |
| GTIN | 3595861147355 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.24 in (26.0 cm) |
| Package 1 Weight | 7.51 oz (213.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 3.76 lb(US) (1.704 kg) |
