Description

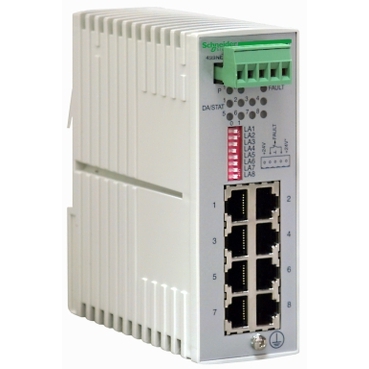

| Range of product | ConneXium |
|---|---|
| Product or component type | Ethernet TCP/IP unmanaged switch |
| Concept | Transparent Ready |
| communication port protocol | Ethernet TCP/IP SSH HTTP HTTPS SNMP SFTP SCP LLDP |
| Port Ethernet | 10BASE-T/100BASE-TX – 8 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Integrated connection type | Shielded RJ45 copper cable |
|---|---|
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Ethernet service | SNMP-Traps and SYSLOG |
| communication service | Telnet TFTP |
| Redundancy | P1 and P2 redundant power supplies |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 18…32 V DC SELV |
| Power consumption in W | 7 W |
| Electrical connection | Removable connector 5 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE |
| Local signalling | 2 LEDs for P1 P2 power supplies 1 LED for fault 1 LED per channel for Ethernet link active |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault Data link status Switch fault |
| Ethernet cabling system | TF switches |
| Current consumption | 125…290 mA at 24 V DC |
| Width | 47 mm |
| Height | 135 mm |
| Depth | 111 mm |
| Net weight | 0.23 kg |
| Ambient air temperature for operation | 0…60 °C |
|---|---|
| Relative humidity | 0…95 % without condensation |
| IP degree of protection | IP20 |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| Standards | CUL 60950 UL 508 CSA C22.2 No 142 UL 1604 Class 1 Division 2 CSA C22.2 No 213 Class I Division 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6 cm |
| Package 1 Width | 17.5 cm |
| Package 1 Length | 23.5 cm |
| Package 1 Weight | 500 g |
