Description
| range of product | Modicon M580 |
|---|---|

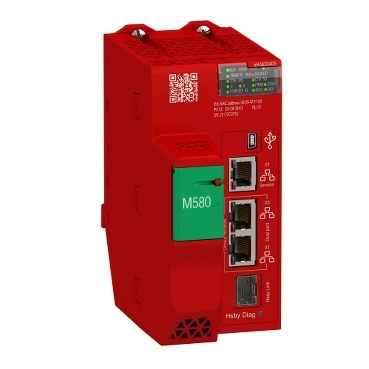

| product or component type | Redundant processor module |
| impregnation material | Conformal coated |
| number of racks | 1 |
|---|---|
| application specific I/O | Counter Motion control SSI encoder Accurate time stamping Serial link HART |
| checks | Process control Safety control |
| control channels | Programmable loops |
| integrated connection type | 1 Ethernet TCP/IP for service port 2 Ethernet TCP/IP for device network USB type mini B 1 Ethernet for HSBY port |
| number of remote I/O station | 8 – 2 rack(s) per remote drop |
| number of distributed equipment | 61 |
| communication module processor capacity | 4.0 Ethernet communication module 16.0 AS-Interface module |
| communication service | DIO scanner RIO scanner |
| memory description | Expandable flash, 4 GB for data storage Integrated RAM, 10 kB for system memory Integrated RAM, 8 MB for program process Integrated RAM, 768 kB for data process Integrated RAM, 2 MB for program safety Integrated RAM, 512 kB for data safety |
| application structure | 1 master task 1 periodic fast task 1 periodic safe task |
| number of instructions per ms | 10 Kinst/ms 100 % Boolean 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
| current consumption | 295 mA at 24 V DC |
| MTBF reliability | 638000 H |
| marking | CE |
| vibration resistance | 3 gn |
|---|---|
| shock resistance | 15 gn |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 0…2000 m 2000…5000 m with derating factor |
| relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| directives | 2014/30/EU – electromagnetic compatibility 2006/42/EC – machinery 2014/34/EU – ATEX directive |
| product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 TÜV |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| environmental characteristic | Hazardous location class I division 2 Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| protective treatment | Conformal coating |
| safety level | SIL 3 conforming to IEC 61508 SIL 3 conforming to IEC 61511 SILCL 3 conforming to IEC 62061 SILCL 3 conforming to ISO 13849-1 category 4 SIL 4 conforming to EN 50126 SIL 4 conforming to EN 50128 SIL 4 conforming to EN 50129 |
| supply | Internal power supply via rack |
| status LED | 1 LED (green) processor running (RUN) 1 LED (red) processor or system fault (ERR) 1 LED (red) I/O module fault (I/O) 1 LED (green) download in progress (DL) 1 LED (red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) 1 LED (green) peer processor running (REMOTE RUN) 1 LED (green) processor ID set to A (A) 1 LED (green) processor ID set to B (B) 1 LED (green) processor acting as Primary (PRIM) 1 LED (green) processor acting as Standby (STBY) 1 LED (red) I/O values overrided by user (FORCED IO) 1 LED (green) processor in safety mode (SRUN) 1 LED (green) processor in maintenance mode (SMOD) 1 LED (green) Hot standby link status (Hsby Diag) |
| net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.6 cm |
| Package 1 Width | 17.7 cm |
| Package 1 Length | 25.0 cm |
| Package 1 Weight | 900.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.8 kg |
