Description

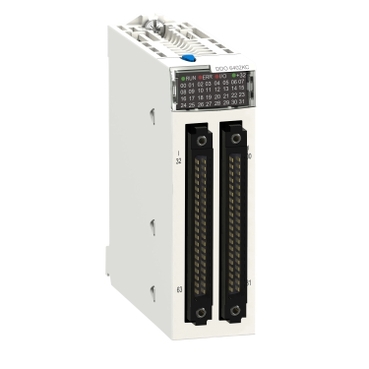

| range of product | Modicon X80 |
|---|---|
| product or component type | Discrete output module |
| product specific application | For severe environments |
| discrete output number | 64 conforming to EN/IEC 61131-2 |
| discrete output type | Solid state |
| discrete output logic | Positive |
| discrete output voltage | 24 V 19…30 V DC |
| discrete output current | 0.1 A |
| current per channel | 0.125 A |
|---|---|
| maximum current per module | 6.4 A |
| insulation resistance | > 10 MOhm 500 V DC |
| power dissipation in W | 6.85 W |
| response time on output | 1.2 ms |
| paralleling of outputs | Yes : 3 maximum |
| typical current consumption | 160 mA at 3.3 V DC |
| MTBF reliability | 159924 H |
| protection type | Reverse polarity protection External short-circuit protection overload protection overvoltage protection |
| output overload protection | With current limiter With electronic circuit breaker 0.125 A < Id < 0.185 A |
| output overvoltage protection | With transil diode |
| output short-circuit protection | With 2 A external fuse |
| reverse polarity protection | Reverse mounted diode |
| voltage detection threshold | < 14 V DC preactuator fault > 18 V DC preactuator at state 0 |
| maximum tungsten load | 1.2 W |
| switching frequency | 0.5/LI² Hz |
| maximum overload time | 15 ms |
| load impedance ohmic | >= 220 Ohm |
| status LED | 1 LED (green) +32 channels indicator 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| net weight | 0.15 kg |
| IP degree of protection | IP20 |
|---|---|
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| environmental characteristic | Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 |
| dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic 500 V DC 1 minute, between group of channels |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 0…60 °C without condensation |
| protective treatment | Conformal coating |
| operating altitude | 0…2000 m 2000…5000 m with derating factor |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 12.0 cm |
| Package 1 Length | 11.0 cm |
| Package 1 Weight | 229.2 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.75 kg |
