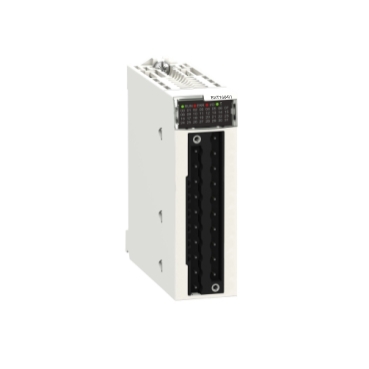

Name: BMXERT1604T
SKU: 6379
Price: 300.00 USD
Availability: InStock

Description

Main
range of product	Modicon X80
product or component type	Multifunction input module

Complementary
function available	Hot swap
data recording	1 ms time stamps
time synchronisation protocol	DCF77 IRIG-B
group of channels	4 groups of 4 inputs for process input
[Us] rated supply voltage	24 V DC (voltage range: 19…30 V) 48…60 V DC (voltage range: 38…75 V) 110…125 V DC (voltage range: 88…156 V)
switching voltage	125 V at 1.3 mA for process input 110 V at 1.3 mA for process input 60 V at 2.5 mA for process input 48 V at 2.5 mA for process input 24 V at 6.7 mA for process input
maximum power consumption in W	4 W for process input
current consumption	30 mA at 24 V DC 130 mA at 3.3 V DC
isolation voltage	2500 V DC for 60 s bus to discrete input 1400 V DC for 60 s bus to IRIG/DCF 2500 V DC for 60 s discrete input to IRIG/DCF
anti bounce filtering	Configurable from 0 to 255 ms
sampling duration	0.5 ms
acquisition time	1 ms
local signalling	1 LED (green) for firmware and module run (RUN) 1 LED (green) for status of time code input (T) 1 LED (red) for module fault (ERR) 1 LED (red) for power supply interruption (I/O) 16 LEDs for input status (0…15)
width	32 mm
height	100 mm
depth	86 mm

Environment
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 4000 m
directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility
product certifications	CE RCM CSA EAC Merchant Navy UL
standards	EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
environmental characteristic	Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
