Description
| range of product | Modicon X80 |
|---|---|
| Accessory / separate part type | Preformed cordset |

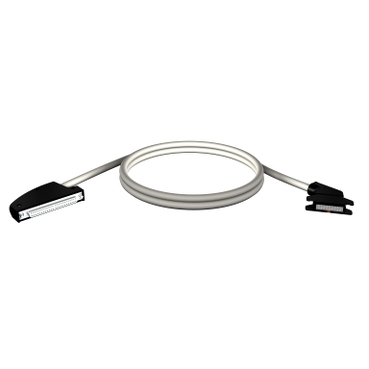

| accessory / separate part designation | Preformed cordset for Telefast Advantys ABE7 sub-bases |
| accessory / separate part destination | For I/O module with 40-way connectors |
| number of cables | 2 |
| electrical connection | 1 connector 40 ways 2 connectors HE10 |
| cable length | 3 m |
| total number of wires | 40 |
|---|---|
| wire section | 0.324 mm² |
| net weight | 0.94 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 886.0 g |
| Package 1 Height | 4.0 cm |
| Package 1 width | 25.0 cm |
| Package 1 Length | 29.0 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 288 |
| Package 2 Weight | 2952.0 kg |
| Package 2 Height | 105.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 6 |
| Package 3 Weight | 5.9 kg |
| Package 3 Height | 15.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
