Description

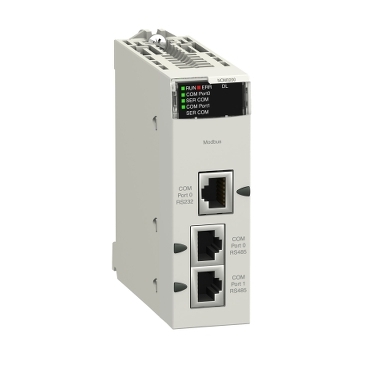

| range of product | Modicon X80 |
|---|---|
| product or component type | Serial links module |
| concept | Serial link |
| integrated connection type | RS232 RJ45 115.2 kbit/s 8 wires RS485 RJ45 57.6 kbit/s 1 twisted pair |
| protective treatment | TC |
| supply | Internal power supply via rack |
|---|---|
| marking | CE |
| local signalling | 1 LED (red) for module fault (ERR) 1 LED (green) for module running (RUN) 1 LED (green) for activity on the serial link (SER COM 0) 1 LED (green) for activity on the serial link (SER COM 1) |
| current consumption | 80 mA at 24 V DC |
| module format | Standard |
| net weight | 0.23 kg |
| ambient air temperature for operation | 0…60 °C |
|---|---|
| relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 218.0 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 11 cm |
| Package 1 Length | 11.5 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Weight | 3.585 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
