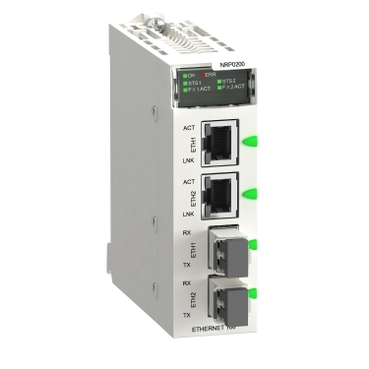

Description
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Fibre optic repeater |
| Optic fiber type | Multi mode |
| Rated voltage | 24 V |
|---|---|
| Current consumption | 140 mA typical 200 mA maximum |
| Function available | Hot swap |
| Number of port | 2 RJ45 with 100BASE-TX port Ethernet conforming to IEEE 802.3u 2 fiber optic with 100BASE-FX port Ethernet conforming to IEEE 802.3u |
| Local signalling | 1 LED (green) for power supply status 1 LED (red) for error condition (ERR) 2 LEDs (green) for link status 2 LEDs (green) for fiber port state and activity |
| Wavelength | 1310 nm |
| Operating distance | 0…2000 m |
| Attenuation | -23.5…-14 dB (50/125 µm) -20…-14 dB (62.5/125 µm) |
| Rise/fall time | 3 ns |
| Receiver sensitivity | – 31…- 14 dBm |
| marking | CE |
| Width | 32 mm |
| Height | 100 mm |
| Depth | 86 mm |
| Product weight | 203 g |
| Ambient air temperature for operation | 0…60 °C |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 0…95 % |
| Directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| Product certifications | CE RCM CSA EAC Merchant Navy UL |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Dielectric strength | 1400 V DC between field and bus 500 V DC between channels |
| IP degree of protection | IP20 |
| Operating altitude | 0…4000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 11.200 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 249.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.789 kg |
