TCSEFEC2CF3F20

Original price was: $ 1,073.00.Current price is: $ 825.00.

In stock

Category:

Description

Main
range of product ConneXium

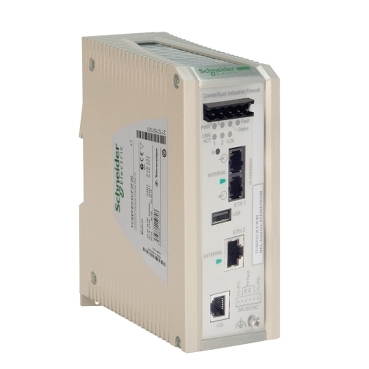

product or component type Router
Industrial Ethernet firewall
Complementary
concept Transparent Ready
communication port protocol SNMP v3
NTP/SNTP
PPPoE (Point-to-Point Protocol over Ethernet)
communication service SSH server
VPN security
NAT router
function available Diagnostic report
DoS (denial of service)
Learning mode
Reachability test (ping)
Web management
Alarm relay
Backup
CLI (command line interface)
Multiple configurations
Packet filtering
External authentication
Monitoring
LED display of operating modes and faults
port Ethernet 100BASE-FX – 1 port(s) fiber optic
10/100BASE-TX – 1 port(s) copper cable
Ethernet service SNMP-Traps
DHCP server
Configuration via web server
redundancy Yes
[Us] rated supply voltage 12…48 V DC
24 V AC
supply voltage limits 9.6…60 V DC SELV
18…30 V AC SELV
holding time >= 10 ms
power consumption in W 8.1 W
marking CE
local signalling 2 LEDs for P1 P2 power supplies
1 LED for fault
1 LED for device status
1 LED for external port status
1 LED for internal port status
1 LED for serial port status
width 60 mm
height 145 mm
depth 125 mm
net weight 0.63 kg
MTBF reliability 426.672 H
mounting support 35 mm symmetrical DIN rail
Environment
ambient air temperature for operation 0…60 °C
ambient air temperature for storage -40…70 °C
relative humidity 10…95 % without condensation
IP degree of protection IP20
pollution degree 2
operating altitude 2000 m
standards EN 61000-4-2/3/4/5/6/9
IEC 60068-2-27
EN 60825-1 class 1
EN 55022 FCC class A
CSA C22.2 No 213
CSA C22.2 No 14
CUL 508
IEC 60068-2-6
Packing Units
Package 1 Weight 0.615 kg
Package 1 Height 210.000 mm
Package 1 width 220.000 mm
Package 1 Length 230.000 mm
