Sale!

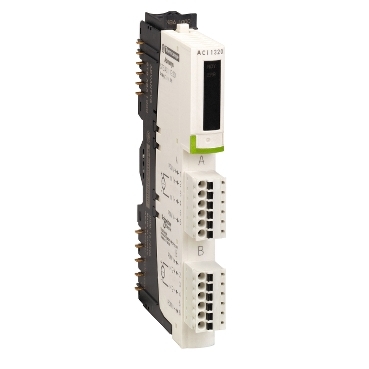

STBACI0320K

Original price was: $ 308.00.Current price is: $ 287.00.

In stock

Category:

Description

Main
range of product Modicon STB distributed I/O solution
product or component type Standard analog input kit
kit composition  6-terminal spring clamp connector
STBXTS1100, 6-terminal screw type connector
STBXBA2000 base
STBACI0320 module
analogue input type Current 0…20 mA
Current 4…20 mA
analogue input number 4
analogue input resolution 15 bits + sign
type of filter Single low pass input filter 985 Hz
Complementary
absolute maximum input 25 mA/50 V DC
cold swapping Yes
hot swapping fallback Yes for standard NIMs
fallback status State 0 basic NIMs
User configurable standard NIMs
data format IEC 61131-2
EN 61131-2
update time 10 ms
integral linearity +/- 0.05 %FS
input impedance 250 Ohm
maximum supply current for sensors 25 mA per input channels
protection type Short-circuit protection
absolute accuracy error +/- 0.4 % of full scale 25 °C
temperature drift +/-0.005 %/°C
insulation between channels and logic bus 1780 V for 1 minute
insulation between channels and sensor bus 200 V
addressing requirement 8 input words
product compatibility Mounting base STBXBA2000
Power distribution module STBPDT3100/3105
[Us] rated supply voltage 24 V DC
supply Power distribution module
current consumption 95 mA at 5 V DC for logic bus
marking CE
overvoltage category II
status LED 1 LED (green) module status (RDY)
1 LED (red) module error (ERR)
depth 70 mm
height 18.4 mm
width 128.3 mm
Environment
product certifications CSA
UL
FM Class 1 Division 2
ATEX Cat 3G
C-Tick
pollution degree 2 conforming to IEC 60664-1
operating altitude <= 2000 m
IP degree of protection IP20 conforming to EN 61131-2 class 1
ambient air temperature for operation -25…70 °C
ambient air temperature for operation 32…140 °F without derating
ambient air temperature for storage -40…85 °C without derating
ambient air temperature for storage -40…185 °F without derating
relative humidity 95 % at 60 °C without condensation
vibration resistance +/-0.35 mm at 10…58 Hz
3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail
5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail
shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 146.0 g
Package 1 Height 2.7 cm
Package 1 width 13 cm
Package 1 Length 8 cm
Unit Type of Package 2 S02
Number of Units in Package 2 28
Package 2 Weight 4.514 kg
Package 2 Height 15 cm
Package 2 width 30 cm
Package 2 Length 40 cm
