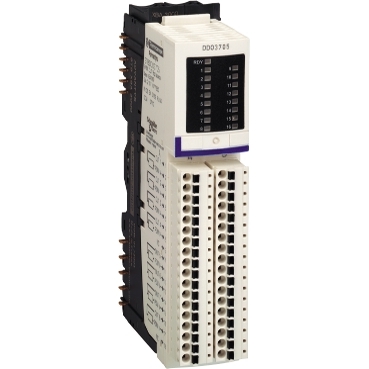

Description
| range of product | Modicon STB distributed I/O solution |
|---|---|
| Product or component type | Basic digital output kit |
| Kit composition | STBDDO3705 module STBXBA3000 base STBXTS1180, 18-terminal screw type connector |
| Discrete output number | 16 |
| discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
| Discrete output current | 500 mA |
|---|---|
| discrete output logic | Positive |
| Output voltage | 19.2…30 V DC |
| Absolute maximum voltage | 35 V 1.3 ms |
| Response time | 2 ms off-to-on 2 ms on-to-off |
| Cold swapping | Yes |
| hot swapping | No for basic NIMs |
| Protection type | Power protection integrated fuse on PDM time lag 5 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| Maximum leakage current | 0.4 mA at state 0 30 V |
| Maximum load capacitance | 10 µF |
| Maximum load inductance | 1000 mH at 4 Hz |
| Reset | Manual reset COM fault |
| Product compatibility | Power distribution module STBPDT3100/3105 I/O base STBXBA3000 |
| [Us] rated supply voltage | 24 V DC |
| supply | Power distribution module |
| Current consumption | 135 mA at 5 V DC for logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (green) module status (RDY) 1 LED per channel (green) channel status (OUT1 to OUT16) |
| height | 13.9 mm |
| Depth | 70 mm |
| Width | 128.3 mm |
| Net weight | 0.086 kg |
| Standards | IEC 61131-2 |
|---|---|
| product certifications | UL CSA FM Class 1 Division 2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation | 0…60 °C (without derating) |
| Ambient air temperature for operation | 32…140 °F without derating |
| Ambient air temperature for storage | -40…85 °C without derating |
| Ambient air temperature for storage | -40…185 °F without derating |
| Relative humidity | 95 % at 60 °C without condensation |
| Vibration resistance | 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10…58 Hz |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.622 cm |
| Package 1 Width | 7.947 cm |
| Package 1 Length | 13.052 cm |
| Package 1 Weight | 210.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.77 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 86 kg |
