Description

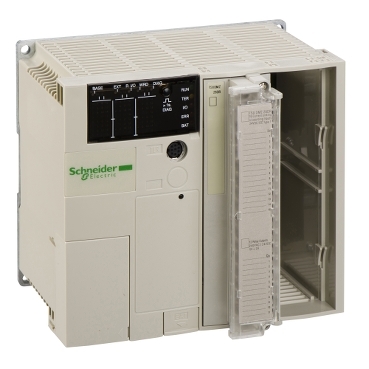

| Range of Product | Modicon TSX Micro automation platform |
|---|---|
| Product or Component Type | Modular base controller |
| Primary voltage | 100…240 V 90…264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Number output current | 0.5 A |
| Number of slots | 3 |
|---|---|
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 16 event tasks 1 master task 1 fast task |
| System overhead | 1.6 ms master task |
| Protection Type | Overload protection Short-circuit |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3 Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for operation |
| Operating altitude | 0…6561.68 ft (0…2000 m) |
| Width | 13.44 in (341.4 mm) |
| Height | 5.94 in (151 mm) |
| Depth | 5.98 in (152 mm) |
| Net Weight | 3.79 lb(US) (1.72 kg) |
| Category | US1PC1422556 |
|---|---|
| Discount Schedule | PC14 |
| GTIN | 3389110580518 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.91 in (15.0 cm) |
| Package 1 Width | 6.69 in (17.0 cm) |
| Package 1 Length | 9.45 in (24.0 cm) |
| Package 1 Weight | 4.02 lb(US) (1.824 kg) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 15.75 in (40.0 cm) |
| Package 2 Length | 23.62 in (60.0 cm) |
| Package 2 Weight | 17.61 lb(US) (7.99 kg) |
