Description

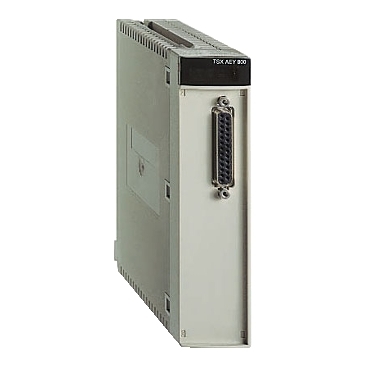

| Range of Product | Modicon Premium Automation platform |
|---|---|
| Product or Component Type | Analog input module |
| Input level | Low level |
| analogue input number | 8 |
| Analogu input type | Current 0…20 mA Current 4…20 mA Voltage +/- 10 V Voltage 0…10 V Voltage 0…5 V Voltage 1…5 V |
| Analog/digital conversion | 16 bits |
| Nominal read cycle time | 29.7 ms |
|---|---|
| Fast read cycle time | 3.3 ms + 3.3 ms x number of channels used |
| Measurement error | 0.12 % of full scale 0…20 mA 0…60 °C 0.12 % of full scale 4…20 mA 0…60 °C 0.13 % of full scale 0…5 V 25 °C 0.13 % of full scale 1…5 V 25 °C 0.142 % of full scale 0…20 mA 25 °C 0.142 % of full scale 4…20 mA 25 °C 0.191 % of full scale 0…5 V 0…60 °C 0.191 % of full scale 1…5 V 0…60 °C 0.244 % of full scale +/- 10 V 25 °C 0.244 % of full scale 0…10 V 25 °C 0.305 % of full scale +/- 10 V 0…60 °C 0.305 % of full scale 0…10 V 0…60 °C |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Isolation between channels | +/- 200 V |
| Common mode between channels | +/- 200 |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm -30…30 V at state 1 250 Ohm |
| Electrical connection | 1 connector SUB-D 25 |
| Overcurrent | -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 475 mA 5 V DC |
| module format | Standard |
| Net Weight | 0.73 lb(US) (0.33 kg) |
| Standards | IEC 1131 |
|---|---|
| Product Certifications | ABS RINA LR BV DNV GL RMRS |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0…6561.68 ft (0…2000 m) |
| protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 |
| GTIN | 3389110876345 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.24 in (26.0 cm) |
| Package 1 Weight | 15.31 oz (434.0 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 15.75 in (40.0 cm) |
| Package 2 Length | 23.62 in (60.0 cm) |
| Package 2 Weight | 13.57 lb(US) (6.155 kg) |
