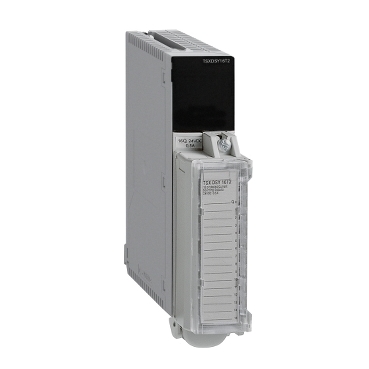

TSXDSY16R5

Original price was: $ 1,066.00.Current price is: $ 820.00.

In stock

Categories: ,

Description

Main
range of product Modicon Premium Automation platform
product or component type Discrete output module
discrete output number 16
discrete output type Relay not protected
discrete output voltage 12…24 V DC conforming to EN/IEC 61131-2 10…34 V
24…240 V AC conforming to EN/IEC 61131-2 20…264 V
Complementary
[Ith] conventional free air thermal current 3 A
response time < 10 ms (deactivation)
< 8 ms (activation)
contacts type and composition 1 NO
output overvoltage protection DC inductive, by discharge diode on each preactuator
AC inductive, by RC circuit MOV (ZNO) on each preactuator
output overload protection 1 external fuse per channel or group of channel fast blow
short-circuit protection 1 external fuse per channel or group of channel fast blow
isalotion resistance > 10 MOhm 500 V
power dissipation (0.25 W + 0.2 W x No of outputs at state 1)
electrical durability 1000000 cycles DC-12 24 W 24 V resistive
1000000 cycles DC-3 24 W 24 V inductive
2000000 cycles DC-3 10 W 24 V inductive
300000 cycles DC-12 40 W 24 V resistive
100000 cycles AC-14 220 VA 220 V inductive
100000 cycles AC-15 220 VA 220 V inductive
1000000 cycles AC-12 110 VA 110 V resistive
1000000 cycles AC-12 220 VA 220 V resistive
1000000 cycles AC-12 50 VA 48 V resistive
1000000 cycles AC-14 110 VA 220 V inductive
1000000 cycles AC-15 110 VA 220 V inductive
150000 cycles AC-14 110 VA 110 V inductive
150000 cycles AC-15 110 VA 110 V inductive
1500000 cycles AC-14 50 VA 110 V inductive
1500000 cycles AC-15 50 VA 110 V inductive
2000000 cycles AC-14 24 VA 48 V inductive
2000000 cycles AC-15 24 VA 48 V inductive
3000000 cycles AC-14 50 VA 220 V inductive
3000000 cycles AC-15 50 VA 220 V inductive
500000 cycles AC-12 110 VA 48 V resistive
500000 cycles AC-12 220 VA 110 V resistive
500000 cycles AC-14 24 VA 24 V inductive
500000 cycles AC-15 24 VA 24 V inductive
5000000 cycles AC-14 10 VA 110 V inductive
5000000 cycles AC-14 10 VA 220 V inductive
5000000 cycles AC-14 10 VA 48 V inductive
5000000 cycles AC-15 10 VA 110 V inductive
5000000 cycles AC-15 10 VA 220 V inductive
5000000 cycles AC-15 10 VA 48 V inductive
700000 cycles AC-12 50 VA 24 V resistive
marking CE
electrical connection Screw terminal block
current consumption 135 mA at 24 V DC rack
80 mA at 5 V DC
module format Standard
net weight 0.38 kg
Environment
dielectric strength 2000 V 50/60 Hz 60 s
standards 73/23/EEC
IEC 61131-2
UL 508
CSA C22.2 No 213 Class I Division 2 Group B
92/31/EEC
89/336/EEC
CSA C22.2 No 213 Class I Division 2 Group C
CSA C22.2 No 213 Class I Division 2 Group A
CSA C22.2 No 142
CSA C22.2 No 213 Class I Division 2 Group D
93/68/EEC
product certifications BV
RINA
LR
ABS
RMRS
GL
DNV
ambient air temperature for operation 0…60 °C
ambient air temperature for storage -25…70 °C
relative humidity 10…95 % without condensation for operation
5…95 % without condensation for storage
operating altitude 0…2000 m
protective treatment TC
IP degree of protection IP20
pollution degree 2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 482.0 g
Package 1 Height 5.5 cm
Package 1 width 18.0 cm
Package 1 Length 26.0 cm
Unit Type of Package 2 S03
Number of Units in Package 2 8
Package 2 Weight 4.371 kg
Package 2 Height 30.0 cm
Package 2 width 30.0 cm
Package 2 Length 40.0 cm
