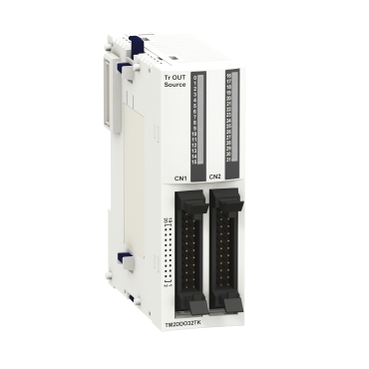

Description
| Range of product | Modicon M238 logic controller |
|---|---|
| Product or component type | Discrete output module |
| Discrete output number | 32 |
| discrete output type | Transistor |
| Discrete output voltage | 24 V |
| discrete output logic | Source |
| discrete output current | 0.4 A |
| Range compatibility | Advantys OTB Twido |
|---|---|
| Output voltage limits | 20.4…28.8 V |
| Current per channel | 0.48 A |
| Maximum current per output common | 2 A |
| Number of common point | 2 |
| Response time | 450 µs from state 0 to state 1 450 µs from state 1 to state 0 |
| [Ures] residual voltage | 0.4 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Maximum inductive load | 10 mH |
| Maximum tungsten load | 9.6 W |
| Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 25 mA at 5 V DC at state 1 for all output 40 mA at 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 |
| mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.105 kg |
| Depth | 81.3 mm |
|---|---|
| height | 90 mm |
| Width | 33.5 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 10.0 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 210.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 29.9 cm |
| Package 2 Length | 39.8 cm |
| Package 2 Weight | 5.89 kg |
