Sale!

499NMS25102

Original price was: $ 858.00.Current price is: $ 660.00.

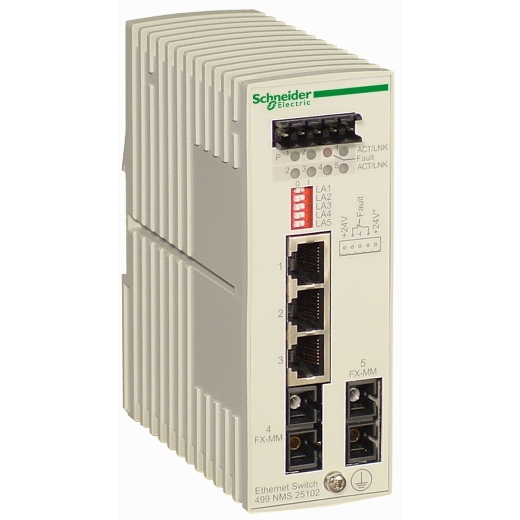

Ethernet TCP/IP switch – ConneXium – 3 ports for copper + 2 for fiber optic 499NMS25102

In stock

Category: Tag:

Description

Ethernet TCP/IP switch – ConneXium – 3 ports for copper + 2 for fiber optic 499NMS25102

Main
range of product ConneXium 499NMS25102
product or component type Ethernet TCP/IP unmanaged switch
concept Transparent Ready
communication port protocol Ethernet TCP/IP
SSH
HTTP
HTTPS
SNMP
SFTP
SCP
LLDP
port Ethernet 10BASE-T/100BASE-TX – 8 port(s) copper cable
maximum number of switches in cascade Unlimited
Complementary
integrated connection type Shielded RJ45 copper cable
transmission support medium Twisted shielded pairs cable CAT 5E for copper cable
maximum cable distance between devices 100 m copper cable
Ethernet service SNMP-Traps and SYSLOG
communication service Telnet
TFTP
redundancy P1 and P2 redundant power supplies
[Us] rated supply voltage 24 V
supply voltage limits 18…32 V DC SELV
power consumption in W 5.9 W
electrical connection Removable connector 5 ways power supply
mounting support 35 mm symmetrical DIN rail
marking CE
local signalling 2 LEDs for P1 P2 power supplies
1 LED for fault
1 LED per channel for Ethernet link active
alarm output 1 voltfree contact 1 A
alarm function Switch fault
Data link status
Power supply fault
Ethernet cabling system TF switches
current consumption <= 240 mA at 24 V DC
width 47 mm
height 135 mm
depth 111 mm
net weight 0.335 kg
Environment
ambient air temperature for operation 0…60 °C
relative humidity 0…95 % without condensation
IP degree of protection IP20
directives 2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility
standards UL 1604
UL 508
CUL 60950
CSA C22.2 No 142
CSA C22.2 No 213 Class I Division 2
Packing Units
Package 1 Weight 0.510 kg
Package 1 Height 60.000 mm
Package 1 width 175.000 mm
Package 1 Length 235.000 mm
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)

EU RoHS Declaration
