Description
| range of product | Modicon STB distributed I/O solution |
|---|---|

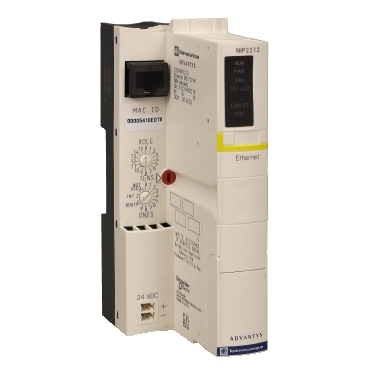

| Product or component type | Standard Network Interface Module |
| Concept | Transparent Ready |
| Port Ethernet | 10BASE-T |
| Number of segments | 1 primary, maximum 6 extensions |
| Number of devices per segment | 0…256 |
| Transmission rate | 10 Mbit/s for bus length of 3000 m with fiber optic connection 10 Mbit/s for bus length of 0…100 m according to 802.3 standard 10 Mbit/s for bus length of 0…1000 m with ConneXium cabling system |
| structure type | Industrial LAN |
| Number of addressable I/O module | 0…32 per island |
|---|---|
| Communication service | SNMP agent Modbus TCP/IP messaging Embedded web (configuration,diagnostics and access to variable) BootP/DHCP protocol |
| [Us] rated supply voltage | 24 V DC |
| Power supply type | SELV |
| Maximum supply current | 700 A |
| Supply voltage limits | 19.2…30 V |
| Input current | 430 mA for supply circuit |
| Nominal output current | 0.575 A at 60…70 °C 1.2 A |
| Output voltage | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (green) status 1 LED (green) 10T 1 LED (green) island state (RUN) 1 LED (green) power supply (PWR) 1 LED (red) module error (ERR) 1 LED (yellow) test mode |
| Depth | 70 mm |
| height | 128.3 mm |
| Width | 40.5 mm |
| Net weight | 0.13 kg |
| Electromagnetic compatibility | Immunity to electromagnetic interference conforming to IEC 61131-2 |
|---|---|
| product certifications | CSA UL FM Class 1 Division 2 ATEX Cat 3G C-Tick |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation | 0…60 °C (without derating) -25…70 °C (with derating factor) |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % at 60 °C without condensation |
| Vibration resistance | 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10…58 Hz |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.400 cm |
| Package 1 Width | 7.300 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 163.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.193 kg |
