XAPM4508H29

Original price was: $ 72.00.Current price is: $ 55.00.

In stock

Category:

Description

Main
range of product Harmony XAP

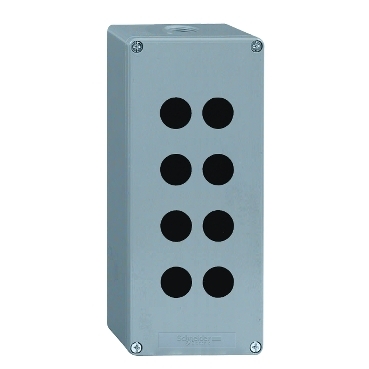

product or component type Die-cast empty control station
device short name XAPM
product destination For Ø 22 mm control and signalling units
product front plate size 80 x 220 mm
usable depth 74.5 mm
number of cut-out 8 cut-outs
colour of base of enclosure Blue
colour of cover Blue
material Zinc alloy
cable entry 1 hole without blanking plug for ISO 429248 cable gland, clamping capacity: 25 mm
device mounting Flush
IP degree of protection IP65 conforming to IEC 60529
Complementary
number of vertical rows 2
net weight 1.37 kg
Environment
protective treatment TC
ambient air temperature for storage -40…70 °C
ambient air temperature for operation -40…70 °C
overvoltage category Class I conforming to IEC 60536
Class I conforming to NF C 20-030
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 1.534 kg
Package 1 Height 8.8 cm
Package 1 width 13.2 cm
Package 1 Length 25.2 cm
Unit Type of Package 2 S03
Number of Units in Package 2 7
Package 2 Weight 11.26 kg
Package 2 Height 30.0 cm
Package 2 width 30.0 cm
Package 2 Length 40.0 cm
