Description

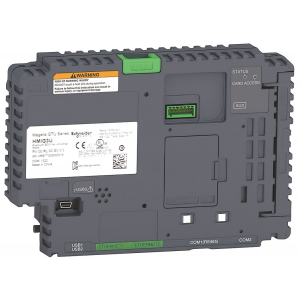

Base unit, Harmony GTU, Open BOX for Universal Panel
| range of product |
Magelis GTU
|
|
|---|---|---|
| product or component type |
Base unit
|
|
| device short name |
Open Box
|
|
| processor name |
Intel X86 1.33 GHz
|
|
| operating system |
Windows Embedded 7
|
|
| software package |
Internet Explorer
Vijeo Citect web client Vijeo Designer run time .NET framework 4.0 Adobe PDF reader Multimedia player Office reader VNC client/server |
| range compatibility |
Magelis GTU
|
|
|---|---|---|
| data storage equipment |
32 GB CFast card
|
|
| port Ethernet |
10BASE-T/100BASE-TX/1000BASE-T
|
|
| memory description |
Backup memory 512 kB NVRAM
Internal 2 GB RAM |
|
| type of cooling |
Natural convection
|
|
| integrated connection type |
USB 2.0 port mini B USB
Auxiliary port terminal block Expansion unit fieldbus card DVI-D video port DVI-D Microphone mini-jack Ethernet TCP/IP with 2 RJ45 COM1 serial link RJ45 RS485, transmission rate: 110…115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110…115200 bit/s USB 2.0 port with 3 USB type A |
|
| communication port protocol |
Modbus
Uni-Telway Modbus TCP/IP |
|
| [Us] rated supply voltage |
12…24 V DC power supply
|
|
| depth |
1.77 in (45 mm)
|
|
| height |
5.16 in (131 mm)
|
|
| width |
7.4 in (188 mm)
|
|
| product weight |
1.98 lb(US) (0.9 kg)
|
|
| number of slots available for expansion |
1 fieldbus card
|
| standards |
CSA C22.2 No 142
ANSI/ISA 12-12-01 CSA C22.2 No 213 class I division 2 IEC 61132-2 UL 508 |
|
|---|---|---|
| product certifications |
CCS
EAC KC ATEX RCM CUL IEC-Ex GL ABS BV DNV LR RINA CULus CE |
|
| pollution degree |
2 conforming to EN 61131-2 Ed.3
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test EN/IEC 61000-4-2 level 3
|
|
| ambient air temperature for storage |
-4…140 °F (-20…60 °C)
|
|
| relative humidity |
10…90 % non-condensing
|
|
| ambient air temperature for operation |
32…140 °F (0…60 °C)
|
|
| operating altitude |
2000
|
|
| vibration resistance |
3.5 mm constant amplitude 5…9 Hz conforming to EN/IEC 61131-2
9.8 m/s² 9…150 Hz conforming to EN/IEC 61131-2 |
| Category |
22567 – MAGELIS HMI GTU
|
|
|---|---|---|
| Discount Schedule |
MC2
|
|
| GTIN |
00785901772569
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
2.9100000000000001
|
|
| Returnability |
Y
|
|
| Country of origin |
CN
|
