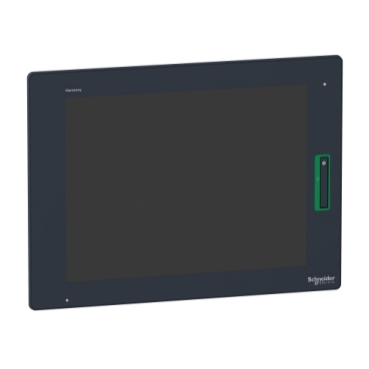

HMIDT732

Original price was: $ 3,185.00.Current price is: $ 2,450.00.

In stock

Category:

Description

Main
Range of product Harmony GTU
Product or component type Flat screen
Terminal type Touchscreen display
[Us] rated supply voltage 12…24 V DC power supply
Supply voltage limits 10.8…28.8 V
Power consumption in W 22 W
Inrush current 30 A
Complementary
Integrated connection type USB 2.0 type A
USB 2.0 type mini B
Touchscreen resolution 1024 x 1024
Pixel resolution 1024 x 768
Display size 15 inch
Aspect ratio 4:3
Display type Colour TFT LCD
Display resolution 1024 x 768 pixels XGA
Display colour 16 million colours
Backlight lifespan 50000 hours
Touch panel Multi touch analogue resistive
Function available Brightness sensor
Type of cooling Natural convection
Type of installation Indoor installation
Cut-out dimensions 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
Width 397 mm
Height 296 mm
Depth 67 mm
Product weight 4.5 kg
Environment
IP degree of protection Front panel: IP66
Front panel: IP67
NEMA degree of protection NEMA 4X front panel
Standards UL 508
ANSI/ISA 12-12-01
Class I division 2 CSA C22.2 No 213
CSA C22.2 No 142
IEC 61132-2
Product certifications CULus
RCM
KC
CE
UKCA
UKEX
Ambient air temperature for operation 0…60 °C conforming to EN 61131-2
Ambient air temperature for storage -20…60 °C
Relative humidity 10…90 % non-condensing
Operating altitude 2000 m
Vibration resistance 3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2
Shock resistance 147 m/s² conforming to EN/IEC 61131-2
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.000 cm
Package 1 Width 37.500 cm
Package 1 Length 52.500 cm
Package 1 Weight 6.260 kg
Unit Type of Package 2 P12
Number of Units in Package 2 16
Package 2 Height 105.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 112.128 kg
