Description

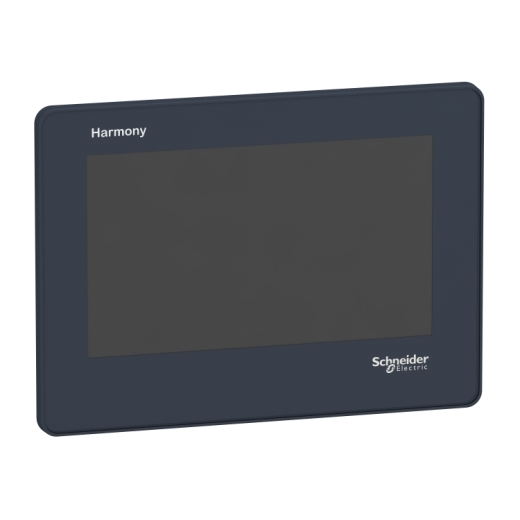

Touch panel screen, Harmony STO & STU, 4.3″ wide Ethernet
| range of product | Harmony STO & STU |
|---|---|
| product or component type | Touch panel screen |
| software designation | EcoStruxure Operator Terminal Expert |
| operating system | Harmony |
| display size | 4.3 inch |
|---|---|
| display type | Colour TFT LCD |
| display colour | 65536 colours |
| display resolution | 480 x 272 pixels |
| touch panel | Analogue |
| backlight lifespan | 50000 hours with white |
| brightness | 16 levels via touch panel |
| character font | ASCII (European characters) Cyrillic Taiwanese (traditional Chinese) Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean |
| [Us] rated supply voltage | 12…24 V DC – 10…20 % |
| power consumption in W | 8.1 W |
| number of pages | 8999 |
| port Ethernet | 10BASE-T/100BASE-TX |
| memory description | Back up of data 512 kB Application memory 26 MB |
| integrated connection type | 1 USB 2.0 type mini B 1 USB 2.0 type A 1 Ethernet TCP/IP – RJ45 |
| supply | External source |
| realtime clock | With RTC-battery set optional |
| downloadable protocols | Modbus TCP Modbus Third party protocols |
| range compatibility | Omron MitsubishI Siemens Allen-Bradley |
| fixing mode | By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel |
| enclosure material | PPT |
| front material | Plastic |
| cut-out dimensions | 77.5 x 112.5 mm 66 x 105 mm with mounting adaptor |
| net weight | 0.22 kg |
| standards | UL 61010-2-201 EN 61131-2 EN 61000-6-2 EN 61000-6-4 CSA C22.2 No 213 CSA C22.2 No 142 UL 61010-1 ANSI/ISA 12.12.01 |
|---|---|
| product certifications | CE C-Tick ATEX zone 2/22 KCC UL cUL |
| ambient air temperature for operation | 0…50 °C |
| ambient air temperature for storage | -20…60 °C |
| relative humidity | 10…90 % without condensation |
| operating altitude | 2000 m |
| IP degree of protection | IP65f (front panel) IP20 (rear panel) |
| NEMA degree of protection | NEMA 4X/13 front panel (indoor use) |
| shock resistance | 15 gn for 11 ms conforming to IEC 61131-2 |
| vibration resistance | 1 gn (f = 5…150 Hz) conforming to IEC 61131-2 3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2 |
| electromagnetic compatibility | Resistance to radiated electromagnetic fields – test level: 10 V/m (80 MHz…2.7 GHz) Resistance to electrostatic discharge – test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2 Resistance to electrostatic discharge – test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 547.5 g |
| Package 1 Height | 132 mm |
| Package 1 width | 78 mm |
| Package 1 Length | 182 mm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 7060 g |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Weight | 178440 g |
| Package 3 Height | 800 mm |
| Package 3 width | 1200 mm |
| Package 3 Length | 1100 mm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
