Description
| Product or component type | Controller |
|---|---|
| Product certifications | BTL CE cULus FCC part 15 class B ICES-003 |
| Communication service | SNMP network management SMTP e-mail notification SMTPS e-mail notification Modbus TCP client Modbus TCP server |
| Current consumption | 400 mA |

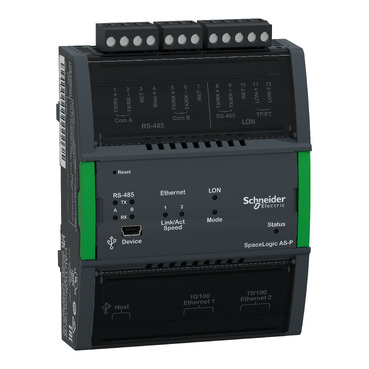

| Device short name | AS-P |
| Flame retardance | UL94V0-5VB |
| IP degree of protection | IP20 |
| Depth | 64 mm |
| Height | 114 mm |
| Net weight | 321 g |
| Width | 90 mm |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…70 °C |
| Memory type | 512 MB RAM 4 GB flash |
| Standards | UL 94 UL 916 FCC CFR 47 part 15 |
| Range | EcoStruxure Building Operation |
| Product brand | Schneider Electric |
| I/O limit processor capacity | 464 I/O, 29 modules |
|---|---|
| Material | ABS/PC |
| Product mounting | On base DIN rail |
| Web services | TLS 1.0 HTTP server Programmable scripts : alarm summaries, report management |
| Integrated connection type | USB 2.0 type A USB type mini B |
| Processor name | Spear 320s |
| Range compatibility | EcoStruxure Building Operation TB-ASP-W1 terminal base EcoStruxure Building Operation TB-AS-W1 terminal base |
| Communication port protocol | BACnet Modbus TCP master RS485 Modbus TCP slave RS485 HTTPS RJ45 HTTP RJ45 LON TP/FT-10 |
| Relative humidity | 0…95 % |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.4 cm |
| Package 1 Width | 6 cm |
| Package 1 Length | 13.6 cm |
| Package 1 Weight | 240 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.513 kg |
