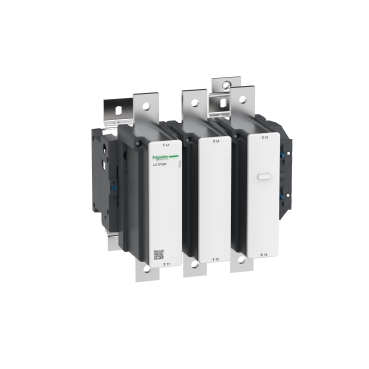

LC1F630

Original price was: $ 2,137.00.Current price is: $ 1,645.00.

In stock

Category:

Description

Main
range TeSys
product name TeSys F
product or component type Contactor
device short name LC1F
contactor application Resistive load
Motor control
utilisation category AC-4
AC-1
AC-3
poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current 1000 A (at <40 °C) at <= 440 V AC AC-1
630 A (at <55 °C) at <= 440 V AC AC-3
motor power kW 335 kW at 380…400 V AC 50/60 Hz (AC-3)
375 kW at 415 V AC 50/60 Hz (AC-3)
400 kW at 440 V AC 50/60 Hz (AC-3)
400 kW at 500 V AC 50/60 Hz (AC-3)
450 kW at 1000 V AC 50/60 Hz (AC-3)
200 kW at 220…240 V AC 50/60 Hz (AC-3)
450 kW at 660…690 V AC 50/60 Hz (AC-3)
100 kW at 400 V AC 50/60 Hz (AC-4)
Complementary
[Uc] control circuit voltage 48…1000 V AC 40…400 Hz with LX1/LX9 coil
48…440 V DC with LX4 coil
[Uimp] rated impulse withstand voltage 8 kV
overvoltage category III
[Ith] conventional free air thermal current 1000 A (at 40 °C)
1250 A
Irms rated making capacity 6300 A AC conforming to IEC 60947-4-1
rated breaking capacity 5040 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 5050 A 40 °C – 10 s
4400 A 40 °C – 30 s
3400 A 40 °C – 1 min
2200 A 40 °C – 3 min
1600 A 40 °C – 10 min
associated fuse rating 630 A aM at <= 440 V
1000 A gG at <= 440 V
average impedance 0.12 mOhm – Ith 1000 A 50 Hz
[Ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
power dissipation per pole 120 W AC-1
48 W AC-3
control circuit voltage limits Operational: 0.85…1.1 Uc AC 40…400 Hz with LX1/LX9 coil
Drop-out: 0.25…0.5 Uc AC 40…400 Hz with LX1/LX9 coil
Operational: 0.85…1.1 Uc DC with LX4 coil
Drop-out: 0.2…0.35 Uc DC with LX4 coil
heat dissipation 20 W
operating time 40…80 ms closing for with LX1/LX9 coil
100…200 ms opening for with LX1/LX9 coil
60…70 ms closing for with LX4 coil
40…50 ms opening for with LX4 coil
mounting support Plate
standards EN 60947-4-1
IEC 60947-4-1
IEC 60947-1
JIS C8201-4-1
EN 60947-1
product certifications ABS
UL
RINA
DNV
CSA
CB
LROS (Lloyds register of shipping)
BV
RMRoS
UKCA
connections – terminals Power circuit: bar 2 cable(s) – busbar cross section: 60 x 5 mm
Power circuit: bolted connection
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²
tightening torque Power circuit: 58 N.m
Control circuit: 1.2 N.m
mechanical durability 5 Mcycles
inrush power in VA 1500…1730 VA, 40…400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
1420…1920 VA (at 20 °C)with LX4 coil
hold-in power consumption in VA 20…25 VA, 40…400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
6.5…12.5 VA (at 20 °C)with LX4 coil
maximum operating rate 1200 cyc/h 55 °C
compatibility code LC1F
Environment
IP degree of protection IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106
protective treatment TH
ambient air temperature for operation -5…55 °C
ambient air temperature for storage -60…80 °C
permissible ambient air temperature around the device -40…70 °C
operating altitude 3000 m without derating
mechanical robustness Vibrations contactor open: 2 Gn, 5…300 Hz
Vibrations contactor closed: 4 Gn, 5…300 Hz
Shocks contactor open: 6 Gn for 1/2 sine wave (11 ms)
Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms)
height 304 mm
width 309 mm
depth 255 mm
net weight 18.6 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 34 cm
Package 1 Width 34 cm
Package 1 Length 45 cm
Package 1 Weight 17.11 kg
Unit Type of Package 2 P06
Number of Units in Package 2 4
Package 2 Height 75 cm
Package 2 Width 60 cm
Package 2 Length 80 cm
Package 2 Weight 76.94 kg
